Scope of application: mainly applicable to engraving machines, for high-speed cutting, drilling, carving, grooving, etc. of wood, plastic, aluminum, rubber and other materials. Product advantages: 1. Optional imported ceramic ball bearing with longer service life 2. Continuous working speed up to 24000RPM 3. High quality sensor and independent fan with low failure rate 4. High specification silicon steel sheet with high energy efficiency and strong overload capacity.

key word:


Customer service:

Product Description

performance parameter

Spindle model JGLF51-30-24Z/6
Rated power (KW) 6.0
Voltage 380
Current 13/22.5
Number of poles 4
Rated speed (r/min) 18000rpm(400hz)
Maximum speed (r/min) 24000rpm(800hz)
Torque (NM) 4.8
Tool handle specification ISO30
Lubrication method Grease
Bearing model

2*7008C P4

2*7006C P4

Weight (Kg) 19

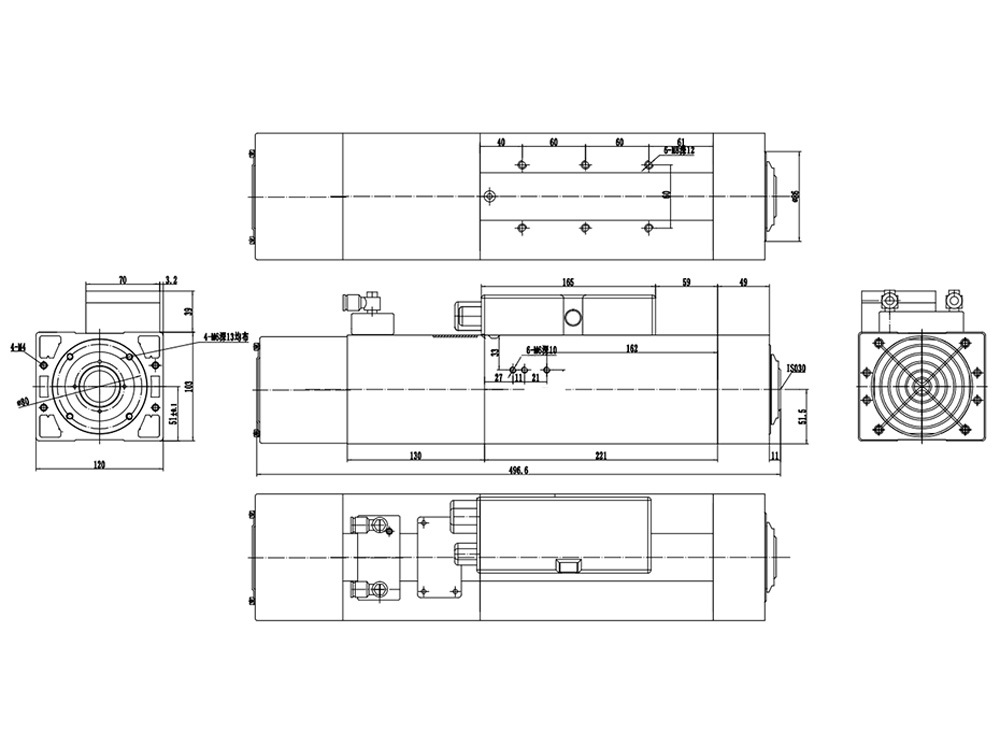

Outline drawing
