JGL125-30-24Z/5.5
Scope of application: mainly applicable to machine tools, used for high-speed and high-precision milling, drilling, tapping and other processing products of metal, non-metal and other materials Advantages: 1. Optional imported bearings, with longer service life 2. According to customer requirements, the rotational speed can be 3000-6000 rpm, to meet different processing needs of customers 3. Water/oil cooling, lower temperature rise
key word:
JGL125-30-24Z/5.5
Product Description
performance parameter
| Spindle model | JGL125-30-24Z/5.5 | |
| Rated power (KW) | 5.5 | |
| Voltage | 380/220 | |
| Current | 10.5/18 | |
| Number of poles | 4 | |
| Rated speed (r/min) | 18000rpm(600hz) | |
| Maximum speed (r/min) | 24000rpm(800hz) | |
| Torque (NM) | 2.92 | |
| Tool handle specification | BT30 | |
| Lubrication method | Grease | |
| Bearing model |
2*7008C P4 2*7006C P4 |
|
| Weight (Kg) | 29.5 | |

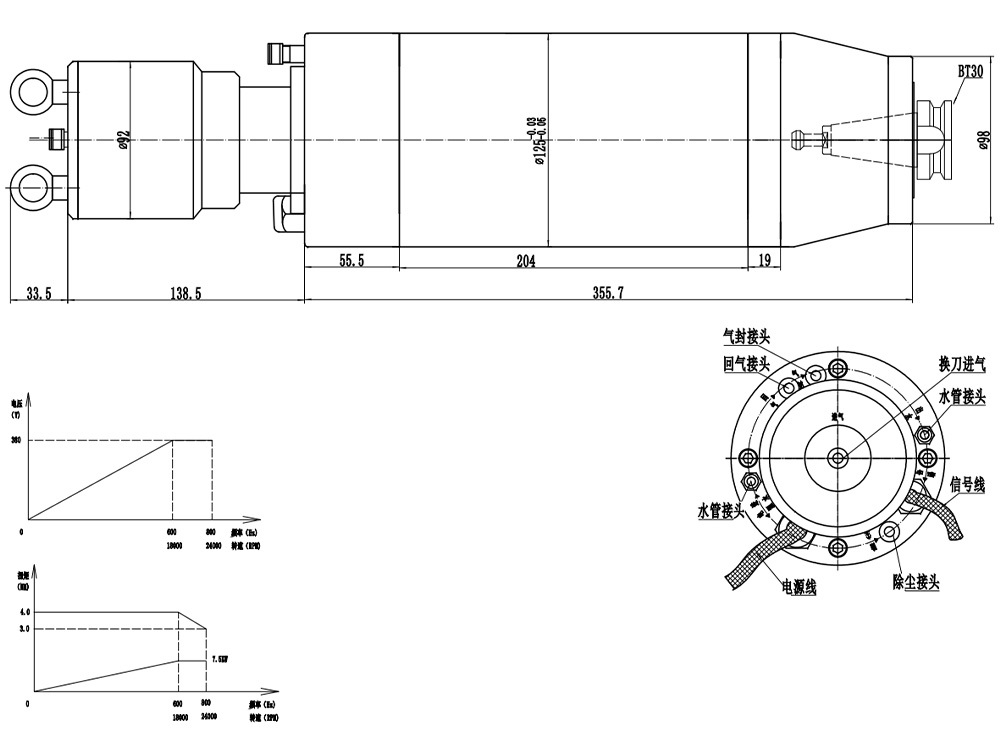

Outline drawing
以上产品具有代表性的规格，如有更改不另行通知。可按客户要求定制，如有疑问，请联系电话0519-83997719，手机：15061137201
