JGD-48A-0.3
Scope of application: mainly applicable to engraving machines, for high-speed cutting, drilling, carving, grooving, etc. of wood, plastic, rubber and other materials. Product advantages: 1. Water cooling method is adopted, and the product temperature rise is lower. 2. Imported bearings are optional, and the service life is longer. 3. The power is from 0.3KW to 7.5KW, which meets the processing needs of customers. 4. The product shell is made of stainless steel, which is more durable. 5. Support non-standard customization
key word:
JGD-48A-0.3
Product Description
performance parameter
| Spindle model | JGD-48A-0.3 | |
| Motor parameters | Rated power (KW) | 0.3 |
| Voltage | 75 | |
| Current | 2.5 | |
| Frequency (Hz) | 333 1000 | |
| Speed (r/min) | 20000 60000 | |
| Shaft end connection | ER8 | |
| Lubrication method | Grease | |
| Number of bearings | 2 | |
| Weight (Kg) | 1.5 | |

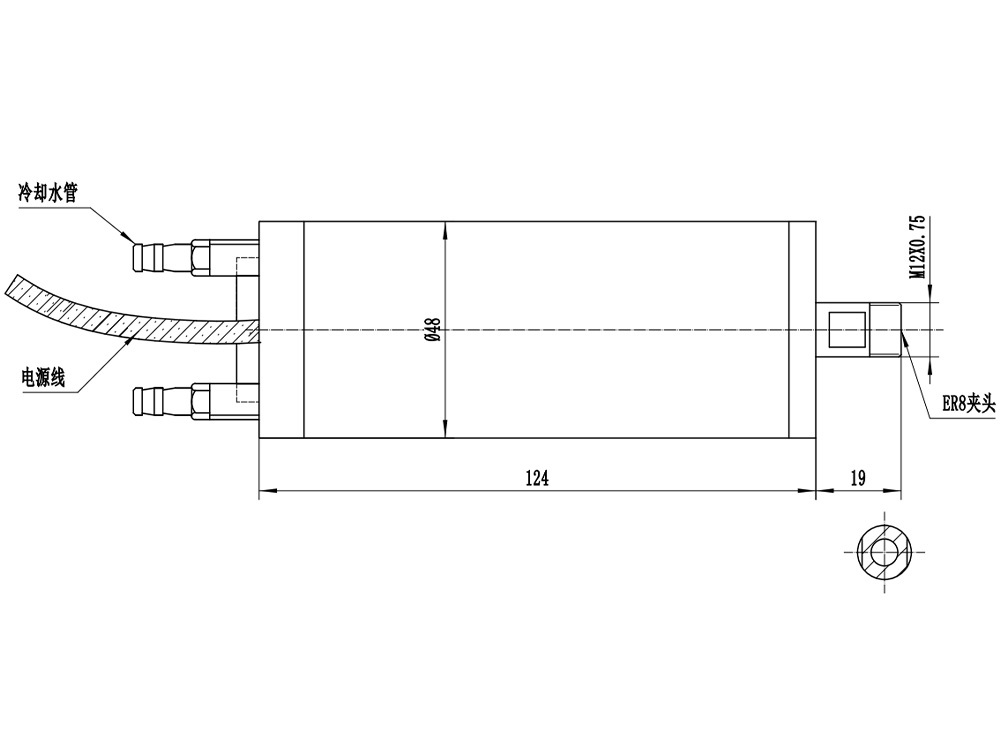

Outline drawing
The above products have representative specifications and are subject to change without prior notice. Customization can be made according to customer requirements. If you have any questions, please contact 0519-8399719 or tel:15061137201
