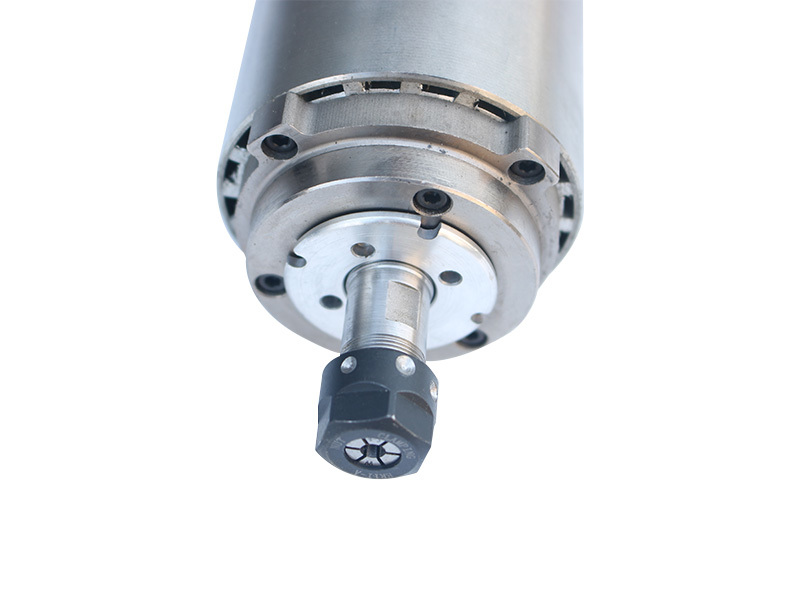

JGF-F65A-0.8
Scope of application: mainly used for engraving machines, high-speed cutting, drilling, carving, grooving of wood, plastic, rubber and other materials. Product advantages: 1. Coaxial fan cooling, more convenient to use 2. Optional imported bearing, longer service life 3. Support non-standard customization
key word:
JGF-F65A-0.8
Product Description
performance parameter
| Spindle model | JGF-F65A-0.8 | |
| Motor parameters | Rated power(KW) | 0.8 |
| Voltage(V) | 220 | |
| electric current(A) | 2.5 | |
| frequency(Hz) | 400 | |
| speed(r/min) | 24000 | |
| Shaft end connection | ER11 | |
| Lubrication method | grease | |
| Number of bearings | 3 | |
| weight(Kg) | 2.8 | |

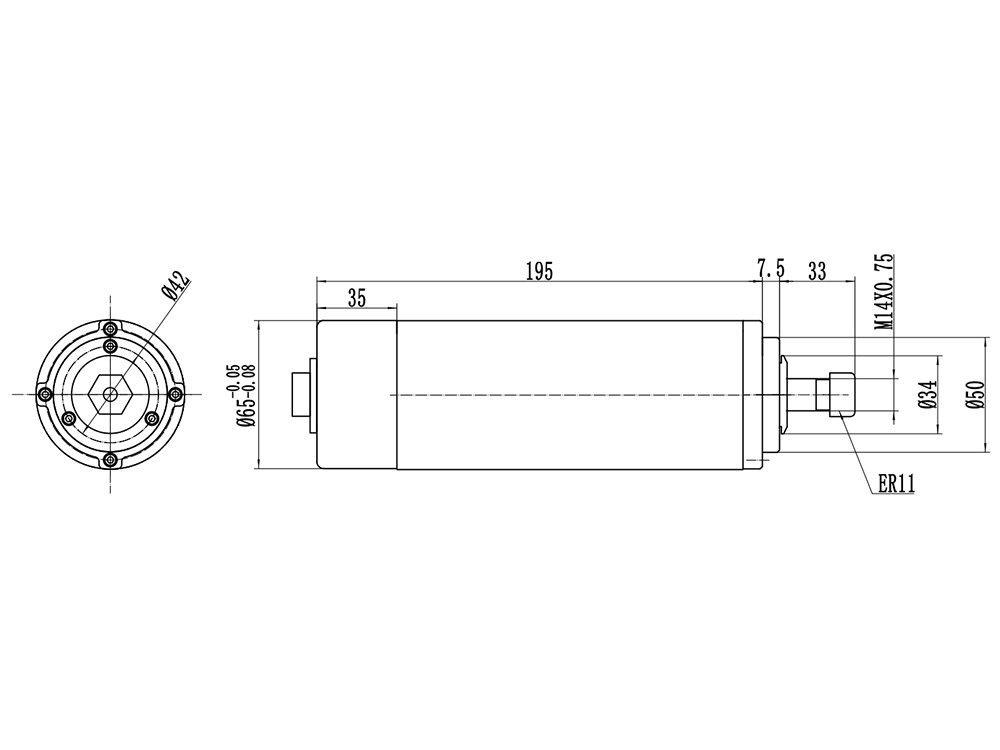

Outline drawing
The above products have representative specifications and are subject to change without prior notice. Customization can be made according to customer requirements. If you have any questions, please contact 0519-8399719 or tel:15061137201
