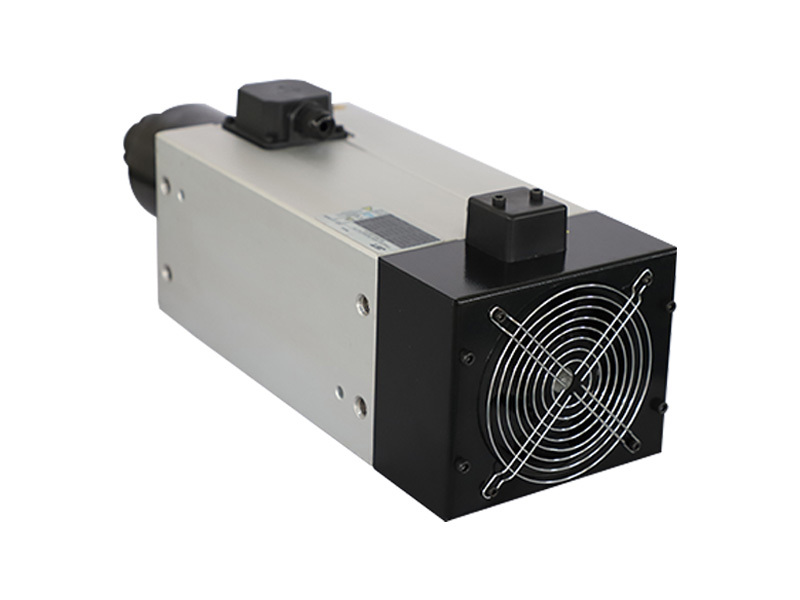

JGF87-18Z/13.5
Scope of application: mainly used on engraving machines, for high-speed cutting, drilling, carving, grooving of wood, plastic, aluminum, rubber and other materials. Product advantages: 1. Adopt ceramic ball bearing, with longer service life 2. Adopt junction box, with simple and firm wiring 3. Optional imported bearing, with longer service life 4. Adopt 24V independent fan device, with lower noise
key word:
JGF87-18Z/13.5
Product Description
performance parameter
| Spindle model | JGF87-18Z/13.5 | |
| Motor parameters | Rated power (KW) | 13.5 |
| Voltage | 380 | |
| Current | 31 | |
| Frequency (Hz) | 600 | |
| Speed (r/min) | 18000 | |
| Torque (NM) | 6.36 | |
| Shaft end connection | ER40 | |
| Lubrication method | Grease | |
| Number of bearings | 4 | |
| Weight (Kg) | 38 | |
Outline drawing
The above products have representative specifications and are subject to change without prior notice. Customization can be made according to customer requirements. If you have any questions, please contact 0519-8399719 or tel:15061137201
