JGFK47-12Z/3.5
Scope of application: mainly used for wood door cutting machine, wood slotting machine, floor slotting machine, wood slotting, cutting, etc. Product advantages: 1. The product has the characteristics of low speed, high torque and high precision. 2. It adopts professional fan design, with lower noise. 3. It adopts high rigid bearing, with stronger bearing capacity. 4. It can be equipped with imported bearing, with longer service life
key word:
JGFK47-12Z/3.5
Product Description
performance parameter
| Spindle model | JGFK47-12Z/3.5 | |
| Motor parameters | Rated power (KW) | 3.5 |
| Voltage | 380/220V | |
| Current | 7.0/12.1 | |
| Frequency (Hz) | 200 | |
| Speed (r/min) | 12000 | |
| Torque (NM) | 2.78 | |
| Shaft end connection | Ф 22 Clamp plate-M12 * 1.75 left (right) | |
| Lubrication method | Grease | |
| Number of bearings | 4 | |
| Weight (Kg) | 6.5 | |

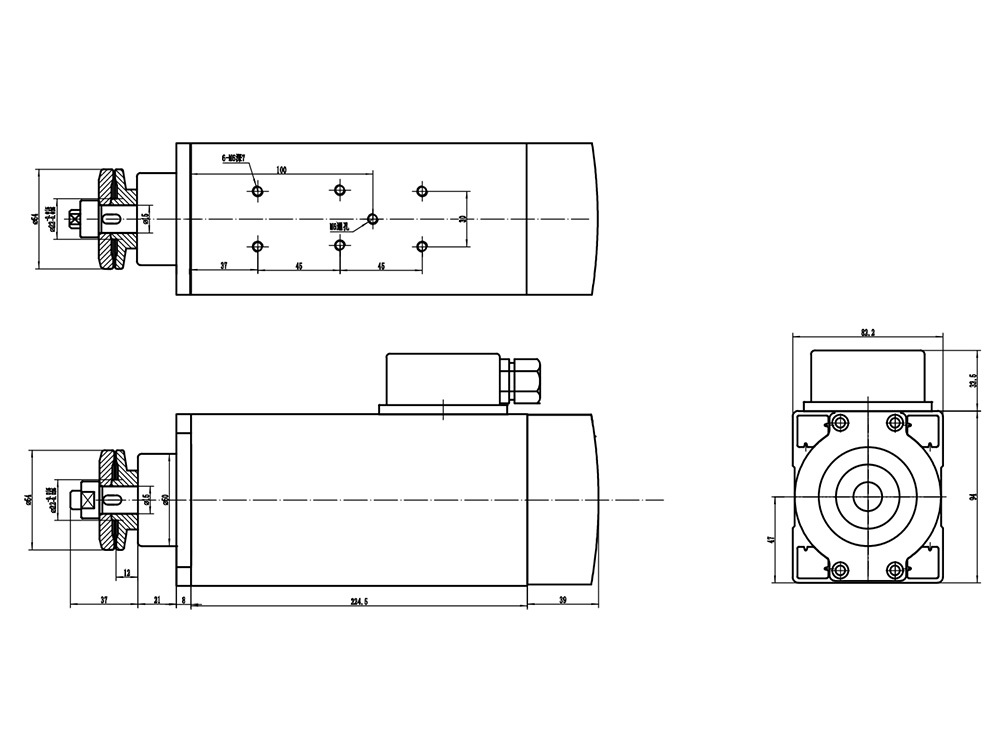

Outline drawing
The above products have representative specifications and are subject to change without prior notice. Customization can be made according to customer requirements. If you have any questions, please contact 0519-8399719 or tel:15061137201
