JGDM-62B-1.2
Scope of application: mainly applicable to machine tools, used for high-speed and high-precision milling, drilling, tapping and other processing products of metal, non-metal and other materials Advantages: 1. Optional imported bearings, longer service life 2. According to customer requirements, the rotational speed can be 3000-6000 rpm to meet different processing needs of customers 3. High product accuracy, the runout accuracy of the inner taper hole at the end of the main shaft ≤ 2um, the mandrel runout accuracy ≤ 10um, Ensure machining accuracy 4. Adopt high specification silicon steel sheet with high energy efficiency and strong overload capacity
key word:
JGDM-62B-1.2
Product Description
performance parameter
| Spindle model | JGDM-62B-1.2 | |
| Motor parameters | Rated power (KW) | 1.2 |
| Voltage | 220 | |
| Current | 3.9 | |
| Frequency (Hz) | 400 | |
| Speed (r/min) | 24000 | |
| Torque (NM) | 0.48 | |
| Shaft end connection | ER11 | |
| Lubrication method | Grease | |
| Number of bearings | 2 | |
| Weight (Kg) | 3.5 | |

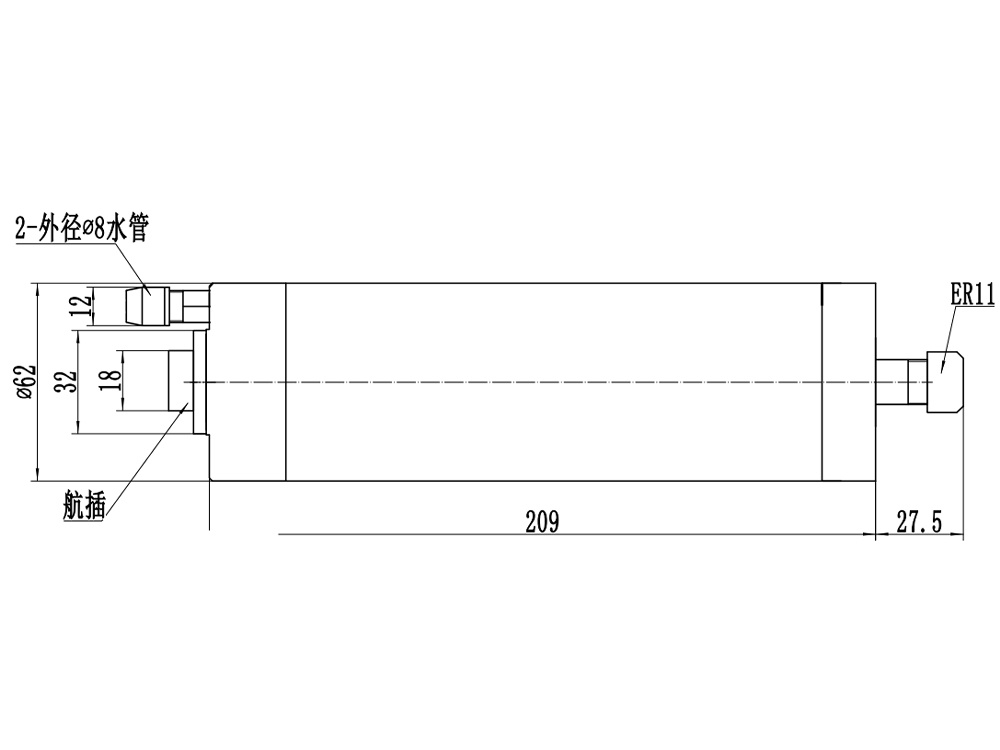

Outline drawing
以上产品具有代表性的规格，如有更改不另行通知。可按客户要求定制，如有疑问，请联系电话0519-83997719，手机：15061137201
