JGDM-62C-1.2
Scope of application: mainly applicable to machine tools, used for high-speed and high-precision milling, drilling, tapping and other processing products of metal, non-metal and other materials Advantages: 1. Optional imported bearings, longer service life 2. According to customer requirements, the rotational speed can be 3000-6000 rpm to meet different processing needs of customers 3. High product accuracy, the runout accuracy of the inner taper hole at the end of the main shaft ≤ 2um, the mandrel runout accuracy ≤ 10um, Ensure machining accuracy 4. Adopt high specification silicon steel sheet with high energy efficiency and strong overload capacity
key word:
JGDM-62C-1.2
Product Description
performance parameter
| Spindle model | JGDM-62C-1.2 | |
| Motor parameters | Rated power (KW) | 1.2 |
| Voltage | 220 | |
| Current | 3.9 | |
| Frequency (Hz) | 700 1000 | |
| Speed (r/min) | 42000 60000 | |
| Torque (NM) | 0.32 0.25 | |
| Shaft end connection | ER11 | |
| Lubrication method | Grease | |
| Number of bearings | 2 | |
| Weight (Kg) | 3.5 | |

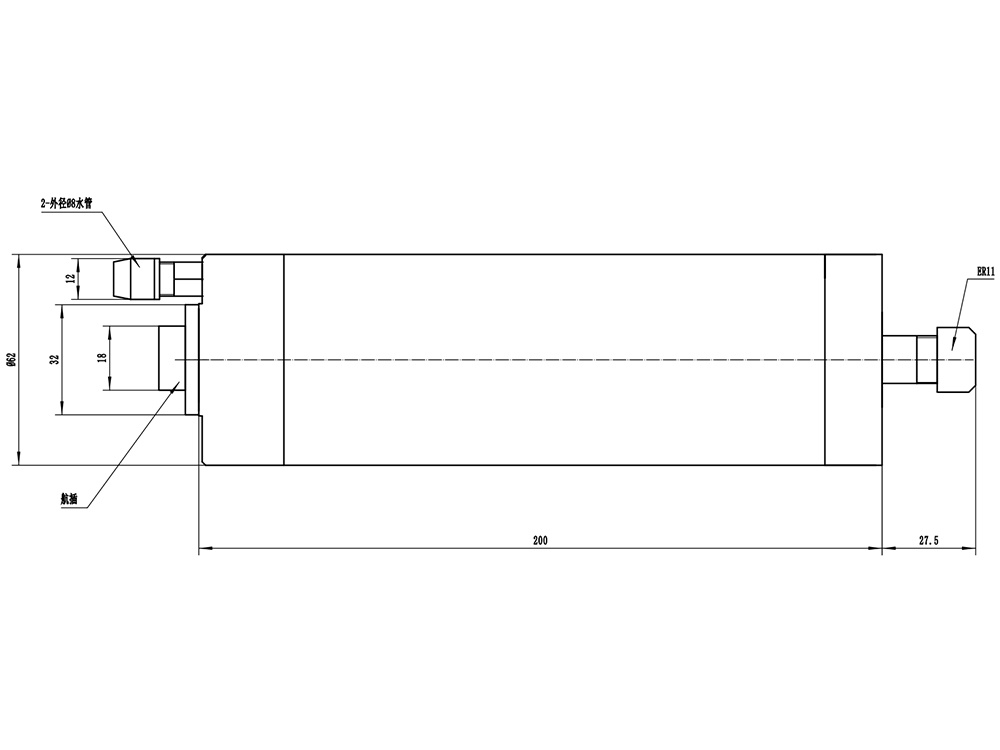

Outline drawing
The above products have representative specifications and are subject to change without prior notice. Customization can be made according to customer requirements. If you have any questions, please contact 0519-8399719 or tel:15061137201
